With a pump and some black tubing, you’re standing in the garden wanting a tomato to drink, hoping a pepper makes it through. Success or stressed-looking foliage boil down to water movement within the tubing. No magic here. This is a delivery system; and there’s a plan required for that.
Drip irrigation is treated by most as an on-off switch. It’s far more of a complex system. Get the size wrong up front and tweaking won’t correct any resulting pressure imbalance later.
Choosing the Right Pipe Size for Your Drip System
Consider your system as tubes inside of tubes inside of tubes. A large mainline carry water from its source outward. Sub-mains branch off, getting smaller still. Lateral lines gets even narrower. At last: emitters dribble out the smallest of small, right at each plant’s base.

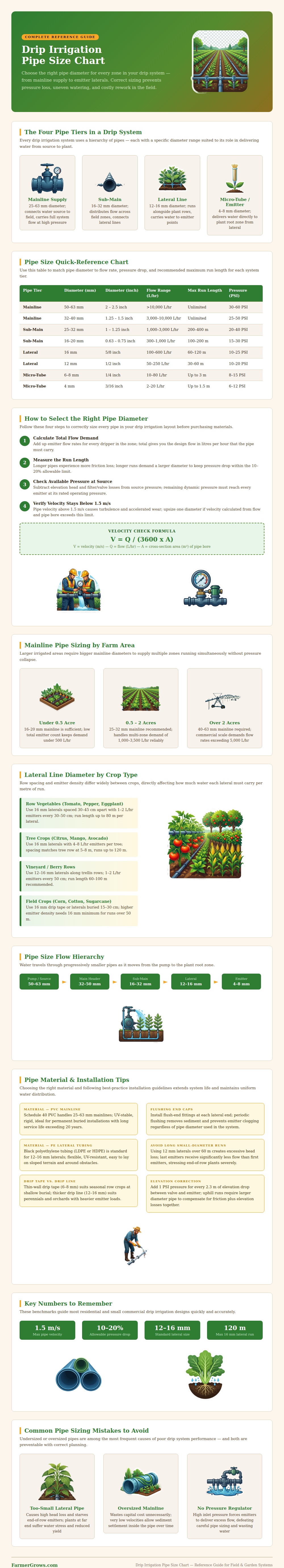

As the chart illustrates, as flow demand decreases, diameter shrinks. That’s by design. Large pipes (near the source) transport volume while minimizing loss of pressure. Narrow tubes (near the roots) reduce water speed so that it soak in instead of puddling on top.
Moving too much water vs. It is not enough? Keeping it under control vs. Not? It is a balance. Most growers make the fatal assumption that “a pipe’s a pipe.” It isn’t. Fifty-millimeter-wide pipe is suitable for a big farm’s mainline. That’s far too much for a small backyard garden, where such pipe would be a waste of space (and money).
Chances are good that a modest line will do just fine on plots of less than half an acre. Match your pipe size to your total demand from the emitters. Ten emitter that pull two liters per hour apiece require a system capable of delivering twenty liters per hour. Size up too much and you’re wasting both space and money. Size down and the end of your row get starved.
Drip systems also suffer from pressure loss. As water moves through a pipe, some of its energy is lost to friction against inside of the tube. Why is that bad? A long run of skinny tubing have trouble delivering even pressure to all your plants. Stretch a slender lateral line too far, and the ones at the far end will barely get a dribble while the ones at the start gets drenched.
The graphic shows maximum lengths for each tier to keep acceptable pressure drop. In general, I wouldn’t of push more than a hundred twenty meters of sixteen millimeter laterals if you intend them to distribute uniformly. At longer distances, both friction and gravity conspire against you. Adding an additional pump might not help. Often what works best is to break the line into shorter segments. Or use a wider pipe.
Diameter is important but so is material. Flexible tubing made of polyethylene is perfect for navigating around tree roots. It can weave around tree roots and fit in uneven ground. It bends easily. It is great for lateral lines. For main supply lines you will want something more rigid. PVC holds up to heavy water pressure and when properly installed and buried will last decades. Use the right stuff in the right places.
Don’t use skinny seasonal drip tape for a permanent orchard. The sun will degrade it fast. The sun will degrade it fast. And don’t try using rigid PVC for all those tiny branches throughout your veggie bed, that’s overkill and hard to install.
How much flow do I need? Before laying a single piece of pipe, tally your total flow requirements: How many emitters are there per zone? What’s their combined output? How far does all that water need to go? What’s my real-world pressure at the source (taking into account elevation gains/losses)?
Remember, the closer to horizontal your garden lies, the less gravity will work for you. A fast test can also rule out too much speed within your pipes; too high and it’ll wear out fittings sooner and cause turbulence in the line. Simple’s best. Get the size right from the start and things will hum along for years without endless fiddling and fixes.
Uniformity is the aim. Each plant gets what it requires…not a drop more; not a drop less. Start by choosing the correct tubing for the task.
