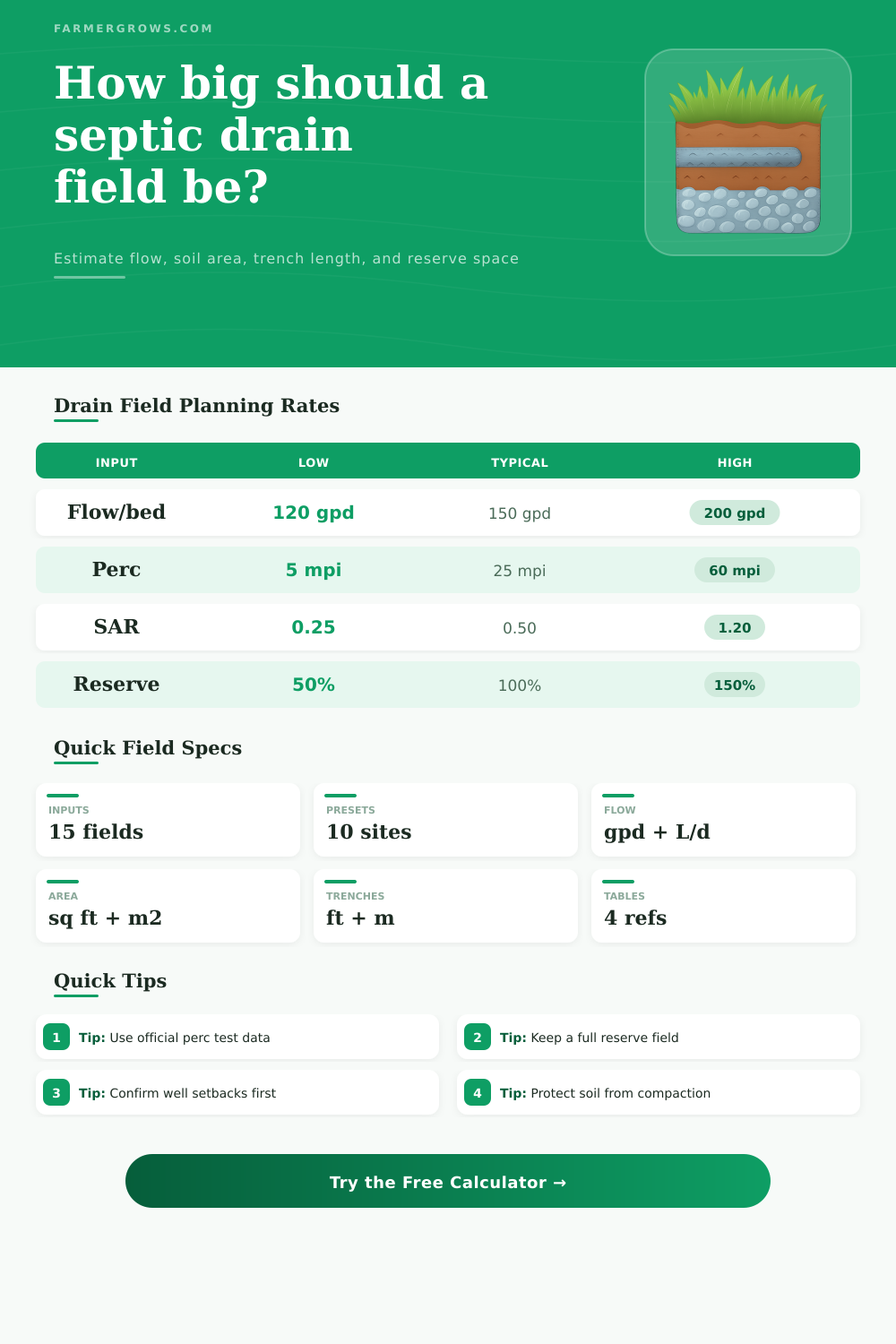

Septic Drain Field Size Calculator
Estimate residential design flow, soil absorption area, trench footage, lateral count, layout footprint, and reserve field space from bedroom count, perc rate, and trench dimensions.
Planning caveat: This calculator is a non-legal estimating tool for conventional residential drain fields. Septic permits, soil evaluation, setbacks, reserve areas, chamber credits, and final sizing must be confirmed by your local health department or licensed onsite wastewater professional.
Drain Field Size Estimate
Results use bottom absorption area: design flow divided by soil absorption rate, then converted to trench length by effective trench width.
| Residence basis | Design flow used | Metric equivalent | Planning note |
|---|---|---|---|
| 1 bedroom | 150 gpd | 568 L/day | Some codes set a higher minimum tank or field size. |
| 2 bedrooms | 300 gpd | 1,136 L/day | Common small home or cabin planning value. |
| 3 bedrooms | 450 gpd | 1,703 L/day | Often used as the standard single-family example. |
| 4 bedrooms | 600 gpd | 2,271 L/day | Use fixture count checks if plumbing load is high. |
| 5 bedrooms | 750 gpd | 2,839 L/day | Large homes may trigger professional review thresholds. |
| 6 bedrooms | 900 gpd | 3,407 L/day | Reserve area and setbacks often become the site limiter. |
| Perc rate | SAR used | 450 gpd field area | Soil planning interpretation |
|---|---|---|---|
| 1 to 3 min/in | 1.20 gpd/sq ft | 375 sq ft | May be too fast in some codes; verify treatment depth and liner rules. |
| 4 min/in | 1.00 gpd/sq ft | 450 sq ft | Fast-draining soil; confirm separation to groundwater or bedrock. |
| 10 min/in | 0.63 gpd/sq ft | 714 sq ft | Often a practical sandy loam planning rate. |
| 15 min/in | 0.50 gpd/sq ft | 900 sq ft | Moderate loading rate for conventional trench estimates. |
| 25 min/in | 0.40 gpd/sq ft | 1,125 sq ft | Slower loam; field footprint grows quickly. |
| 45 min/in | 0.29 gpd/sq ft | 1,552 sq ft | Slow soil; reserve area and slope layout need close review. |
| 55 to under 60 min/in | 0.25 gpd/sq ft | 1,800 sq ft | Near the slow edge for conventional systems in many references. |
| 60 to under 120 min/in | 0.20 gpd/sq ft | 2,250 sq ft | Often needs professional design or alternate treatment depending on code. |
| Trench or chamber width | Area per 100 ft | Length for 900 sq ft | Layout note |
|---|---|---|---|
| 18 in pipe trench | 150 sq ft | 600 ft | Narrow trench creates more lateral runs and distribution points. |
| 24 in pipe trench | 200 sq ft | 450 ft | Common planning width for gravel trench layouts. |
| 30 in pipe trench | 250 sq ft | 360 ft | Useful where bottom width is approved and excavation stays level. |
| 36 in pipe trench | 300 sq ft | 300 ft | Upper common pipe trench width before bed rules may apply. |
| 5 ft chamber trench | 500 sq ft | 180 ft | Chamber calculations are product and jurisdiction specific. |
| Site feature | Planning setback | Reserve rule | Why it matters |
|---|---|---|---|
| Surface water | 50 ft | Keep reserve outside setback | Protects streams, ponds, ditches, and drainage paths. |
| Private drinking water well | 100 ft | Apply to primary and reserve | Well separation is usually one of the first layout checks. |
| Community public well | 500 ft | May need review | Larger flow or closer spacing can require professional evaluation. |
| Property line | 5 ft or more | Local code may be stricter | Neighbor wells, foundations, and easements can control the design. |
| Foundations | 10 to 40 ft | Depends on foundation class | Basements, living space elevation, and nearby structures change distances. |
| Limiting layer below trench | 4 ft vertical | Must exist under reserve | Needed above seasonal high water, bedrock, or restrictive soil layers. |
| Adjacent trenches, low slope | 4 ft undisturbed soil | Use same spacing logic | Slope and soil depth affect spacing between trench runs. |
| Adjacent trenches, steep slope | 6 to 10 ft soil | Plan extra width | Greater slope usually requires wider spacing and careful distribution. |
Protect the soil: Keep vehicles, stockpiles, and construction traffic off the proposed primary and reserve drain field areas. Compaction can lower real infiltration capacity.
Check constraints early: A field that calculates correctly can still fail layout review if wells, slopes, buildings, water lines, flood areas, or reserve space do not fit.
A septic system rely on a drain field to treat the wastewater that leaves the septic tank. The drain field treats the wastewater by allowing the soil to allow microbes to break down the contaminant in the wastewater so that the treated wastewater does not enter the groundwater. The drain field must be a correct size for the home.
If the drain field is too small, the ground will become soggily, emit unpleasant odors from the wastewater, and the drain field will fail. However, if the drain field is to large, a person will end up paying for land and septic field installation that the septic system dont use to treat the wastewater. This calculator will present mathematical results for the drain field after a person enters value for the daily design flow, soil percolation rate, trench width, and the reserve percentage.
How to Size a Septic Drain Field
Each of these value relates to the constraints of the property. For instance, the daily design flow will depend on the number of bedroom, occupants, and water fixtures on the property. The soil percolation rate will come from a percolation test and will allow a person to calculate the square footage of the bottom area of the drain field.
The trench width and the trench spacing will allow a person to calculate the number of linear feet of drain field pipe that the trench will contain. The reserve percentage will allow the drain field calculator to determine how many square foot to reserve for a future drain field replacement. The soil percolation rate is a value that many people under-value when setting up their drain field.
For instance, sandy soil will allow one gallon of wastewater to percolate through one square foot of soil per day. Clay loam soil will require three times as many square foot to allow the same amount of wastewater to percolate through the soil. This percolation rate will change the length of the trench that is require for the drain field.
A drain field for a home that requires 450 feet of trench length on loam soil may require 1,200 feet of trench length for the same home that has soil with a slowerer percolation rate. The reserve space for the drain field will need to be decide at the beginning of the septic system installation process. This space is important for the drain field in many decade.
Most counties will require that the replacement area for the drain field is ready and prepared in case the primary drain field should fail. The size of the primary drain field and the reserve space will need to be calculate to determine if the site has enough space for the drain field. Factors such as setbacks from wells, property lines, and surface water will impact the available area for the drain field.
A person will know before ordering the required component for the septic system if the area will not be able to accommodate the primary and reserve drain fields. The reference tables provide information for the individual so that they do not have to memorize the loading rate for the septic system components. The first table will show how the design flow increase with the number of bedrooms in a house.
The second table will show how many square foot of bottom area will be required for a specific design flow if the percolation rate is 25 minute. The third table will show how many square feet of area will be created by a specific width of trench for every hundred feet of that trench length. These tables will assist a person in setting up their drain field and calculating the size of the components.
However, they will not replace the need for a site evaluation. A drain field can still fail even if the drain field calculator present the proper measurement. For instance, heavy truck that pass over the site could compact the soil.
Another reason that the drain field can fail is if the laterals are installed on an uphill slope, which was not surveyed proper when setting up the drain field. The selected distribution method for the drain field will determine the effectiveness of the drain field on uneven ground. If a person chooses the pressure distribution for the drain field, the laterals will be shorter and the number of area will be closer together.
Using this method, it may be possible to successfully install a drain field on a parcel of land that would not support the gravity method. Many people feel that the table that is published by the county will provide the answer for their drain field. However, this table is merely a starting point for establishing the size of the drain field.
The soil on a property can vary from one part of the lot to another. The water table can vary throughout the year. The water table will influence the percolation rate of the soil.
Also, other well on a property will limit the area of the drain field. A person should run their number on the calculator so that they can determine the proper size for their drain field. They should walk the area that will have the drain field established to determine the feasibility of the site.
Because the soil will need to accept the wastewater from the property for twenty or thirty year, the soil should be protected from compacting and filling. If the soil becomes compacted or filled with anything other than soil, the absorption rate of the soil will drop. If the absorption rate of the soil drops below the standard that was calculated for setting up the drain field, the sized drain field will no longer accept the wastewater that the property will produce.
Therefore, the primary and reserve area for the drain field must remain untouched from the day that the stake are placed in the ground.
