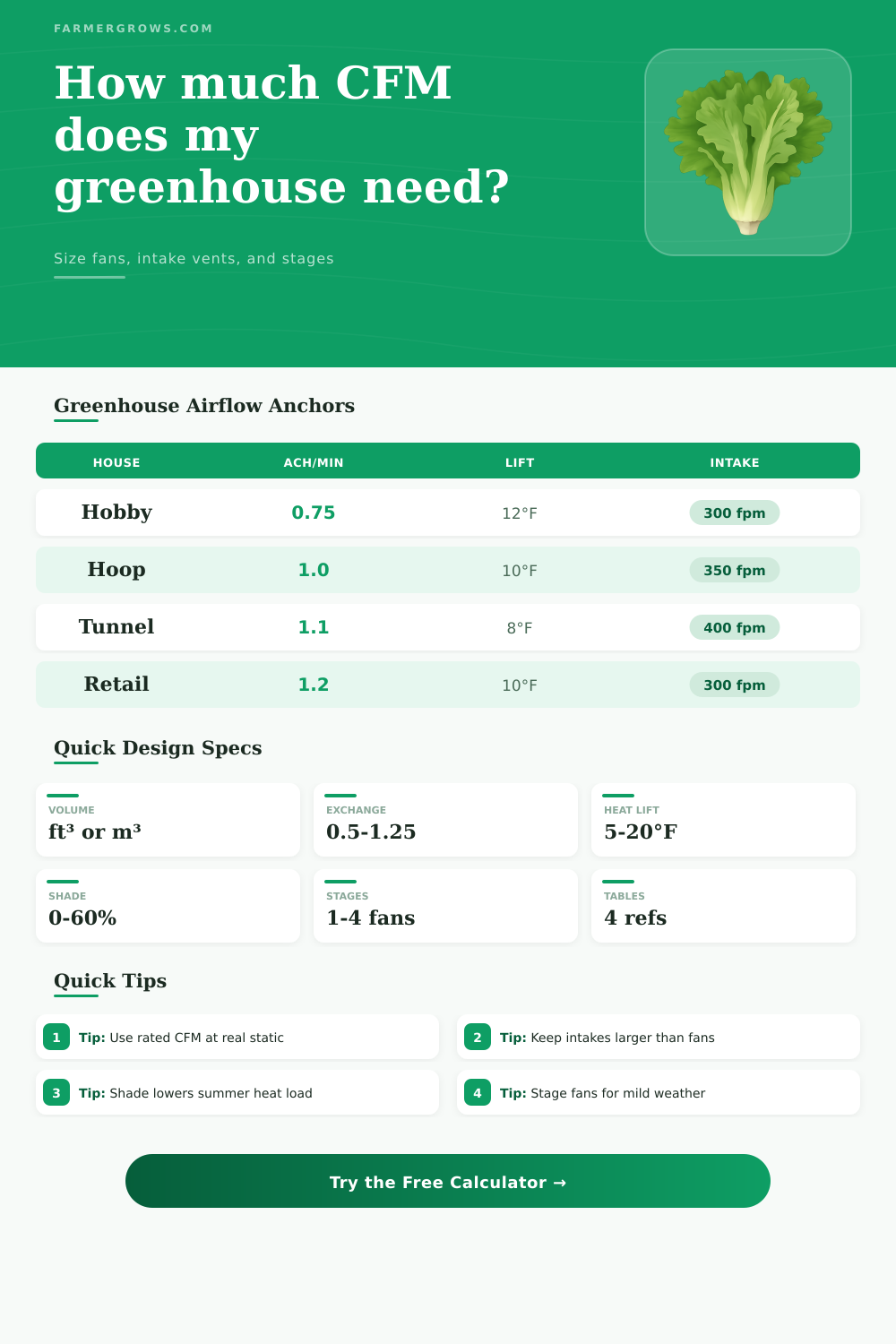

Greenhouse CFM Calculator
Size exhaust fan capacity, fan staging, shade-adjusted heat removal, static pressure allowance, and intake vent area for hobby houses, hoop houses, and production tunnels.
Use this as a planning calculator for summer mechanical ventilation. Final fan selection should use manufacturer CFM ratings at the static pressure created by shutters, pads, filters, guards, and intake openings.
Greenhouse Ventilation Results
Design CFM uses the larger of volume exchange airflow and shade-adjusted heat-removal airflow, then adds the selected static pressure allowance.
| Greenhouse use | Typical ACH/min | Best fit | Design caution |
|---|---|---|---|
| Small hobby greenhouse | 0.5 to 0.75 | Seed starts, home growing, mild climates | Check intake vents because small shutters are often undersized. |
| Warm-season hoop house | 0.75 to 1.0 | Vegetables, bedding plants, moderate solar load | Use circulation fans for air mixing; exhaust CFM alone does not remove hot pockets. |
| Production high tunnel | 1.0 to 1.25 | Summer exhaust systems and dense crop canopies | Rate fans at static pressure when screens, louvers, or pads are installed. |
| Retail or display house | 1.0 to 1.3 | Customer comfort plus crop protection | Stage fans so early stages do not overcool plants during mild hours. |
| Target inlet velocity | Net free area per 10,000 CFM | Gross louver at 60% free area | Use when |
|---|---|---|---|
| 250 fpm | 40.0 ft² | 66.7 ft² | Quiet intake, broad sidewall opening, sensitive seedlings |
| 300 fpm | 33.3 ft² | 55.6 ft² | Balanced house intake with moderate pressure drop |
| 350 fpm | 28.6 ft² | 47.6 ft² | Common louver and shutter planning value |
| 400 fpm | 25.0 ft² | 41.7 ft² | Compact intake where stronger air jets are acceptable |
| Restriction level | Planning allowance | Common sources | Field note |
|---|---|---|---|
| Corrected fan rating | 0% | Manufacturer CFM at design static pressure | Best option when a reliable fan performance table is available. |
| Light restriction | 10% | Clean shutters, guards, short openings | Useful for simple endwall fans with generous intake area. |
| Moderate restriction | 20% | Louvers, insect screen, small inlet area | Good default when you only have free-air fan CFM. |
| Heavy restriction | 35% to 50% | Evaporative pads, dirty screens, long ducts | Measure or model static pressure before buying fans. |
| Stage layout | Typical first stage | Full-capacity trigger | Best use |
|---|---|---|---|
| Single fan stage | 100% | Thermostat calls for exhaust | Small hobby houses and simple tunnels. |
| Two stages | 35% to 50% | Second thermostat 3°F to 5°F above stage one | Most common balance for small commercial houses. |
| Three stages | 25% to 40% | Progressive thermostat or controller steps | Longer houses with mixed crop loads. |
| Four stages | 20% to 30% | Controller ramps to design CFM | Retail bays and larger ranges needing smoother control. |
Match fan ratings to the house. Free-air CFM can look impressive, but shutters, pads, guards, dirty screens, and tight inlets reduce delivered airflow.
Do not starve the fan. Undersized intake vents raise static pressure, lower real CFM, and can pull air unevenly across crops.
Greenhouse ventilation is an process of managing airflow into and out of the greenhouse to control the temperature and humidity within the greenhouse. Proper ventilation require an understanding of the concept of CFM, which stand for Cubic Feet per Minute. The CFM represent the amount of air that moves through a space in one minute.
If you dont manage the CFM appropriate, the hot air that is generated within the greenhouse will remain within that space and create heat stress for the plants that is within the greenhouse. The ventilation system function to replace the hot air within the greenhouse with cooler air from outside the greenhouse so that the temperature within the greenhouse is approximately equal to the temperature outside the greenhouse. In many instances, people will attempt to purchase a greenhouse fan based solely upon the power levels of that fan manufacturer.
Greenhouse Ventilation Basics
However, that power is not the only consideration for greenhouse fans. Other factor that must be considered include the solar gain that the greenhouse receive from the climate and the plants’ latent heat that is released into the greenhouse environment. If the fan is too small for the greenhouse, it will not be able to effectively move the hot air away from the plants.
In contrast, if the fan is too large for the greenhouse, the wind created by that fan may damage the plants. The calculation of the needed airflow for the greenhouse requires the consideration of both the volume of the greenhouse and the heat load of the greenhouse. The volume of the greenhouse is the total volume of air within the greenhouse that must be circulated, or the number of air changes that occur every minute within the greenhouse.
The smaller the greenhouse, the fewer the number of air changes that occur each minute. The larger the greenhouse and the higher the humidity that is created by the plants within the greenhouse, the higher the number of air changes that must occur each minute. The heat load of the greenhouse is the total amount of thermal energy, measured in BTUs, that exist within the greenhouse.
This value change based off the materials that are used to construct the greenhouse; greenhouses that use shade cloth will have different heat loads to greenhouses that have clear glass panels. It is also necessary for greenhouse ventilation systems to consider the difference between the free air CFM and the actual CFM of the fans that are manufactured for greenhouses. The fan manufacturer typically produces the free air CFM.
Free air CFM represent the amount of air that moves through the fan if there are no obstructions to the path of the air from the fan. In the greenhouse, there are many different obstructions to the airflow, including shutters, screens to prevent insects, and the greenhouse structure itself. These obstructions create the static pressure within the greenhouse.
Static pressure slow the movement of the air from the fan. Thus, the actual CFM will always be less than the free air CFM of the fan. To compensate for static pressure, you should increase the target CFM of the fan to ensure that the proper amount of air is moved through the greenhouse.
The intake of the greenhouse is another critical component to the ventilation system. A fan will only move the air that enter the greenhouse through the intake. If the intake is too small for the amount of air that is exhausted from the greenhouse, the fan will struggle to move the air into the greenhouse.
If the exhaust fan struggle to move air into the greenhouse, the exhaust fan will have to work harder to move that air, which create higher noise levels for the exhaust fan. Additionally, there will be dead zones in the greenhouse where the air does not circulate proper. The intake must be large enough to allow for the calculated CFM of the exhaust fan, but the velocity of the air moving into the greenhouse through the intake must be low enough to allow for the air to evenly distribute itself throughout the greenhouse and not overly expose the plants to high velocities of air.
For greenhouses that are of a large size, fan staging is one process that will help to maintain a stable environment for the plants. Fan staging involves the use of multiple fans of varying size so that only a small number of fans are used on mild days and all fans are used when there is a heatwave. Fan staging prevents violent temperature swings between high temperatures and low temperatures within the greenhouse.
This control of the temperatures within the greenhouse is beneficial to the plants because they can better endure steady temperatures rather than extremes of heat and cold. Overall, greenhouse ventilation is a process that involves a balance of the amount of light that enters the greenhouse, the amount of heat that is created by the plants and solar radiation, as well as the air movement created by the fans. The amount of light that enters the greenhouse is necessary for the plants to perform the process of photosynthesis.
However, too much light will result in excessive heat that can be damaging to the plants. Observing the plants and the movement of the air within the greenhouse will allow the grower to determine if the ventilation system is effectively function. If the plants within the greenhouse are in stagnant areas of the greenhouse, the ventilation system is not providing enough air movement.
If the plants have scorched leaf, the ventilation system is not effectively managing the heat within the greenhouse. By calculating the volume and heat load of the greenhouse, accounting for the intake requirements of the exhaust fan, and staging fans according to size and the size of the greenhouse itself, greenhouse growers can effectively manage the environment within their greenhouse.
